Lab Companion TC Series Rapid Temperature Change Chambers: Full-Link 3-Level Validation for AI Compute Hardware

1. Industry Gaps in AI Hardware Reliability Testing

1.1 Distinct Testing Requirements Across Chip, Board and Rack Levels

As AI compute hardware enters large-scale commercial deployment, every stage — from IP core verification and GPU chip packaging to multi-GPU integration, server board validation and full rack delivery — requires rigorous thermal cycling reliability testing. Chip-level, board-level and rack-level testing impose drastically different requirements on chamber volume, temperature ramp rate, load capacity and sensor accuracy, creating unique technical barriers for traditional testing solutions.

Chip-level testing demands small-volume, high-precision chambers with ultra-fast temperature transitions. A single high-performance GPU can reach 700W under full load, requiring wide-temperature thermal cycling to validate operational stability under extreme stress conditions.

Board-level testing requires medium-volume chambers with multi-point temperature monitoring. AI server boards integrate numerous GPUs and HBM modules. Thermal expansion mismatch between different materials may cause solder fatigue and BGA cracking during temperature cycling, which can only be exposed through full-board thermal validation.

Full-rack testing relies on large-scale walk-in chambers with powerful continuous cooling capacity to accommodate standard 42U server racks for system-level reliability verification.

1.2 Key Drawbacks of Traditional Segmented Testing Solutions

Most AI hardware manufacturers currently procure separate testing equipment from different suppliers for chip, board and rack validation. This fragmented approach creates three critical pain points:

Higher overall costs: Multi-vendor procurement eliminates bulk bargaining advantages, resulting in high capital investment and elevated maintenance expenses.

Inconsistent test data: Different chamber brands adopt unique temperature control algorithms and thermal field distributions. Inconsistent testing environments lead to inconsistent datasets, complicating failure analysis and cross-batch result comparison.

Complicated after-sales support: Three sets of equipment mean three independent after-sales systems. Fault diagnosis and maintenance cycles are prolonged, severely delaying R&D and mass production schedules.

2. About Lab Companion: Professional Thermal Test Equipment Manufacturer

2.1 Company Strength

Lab Companion is a professional high-tech manufacturer specializing in environmental reliability test chambers, with 21 years of industry experience. We operate a dedicated R&D center and three manufacturing bases across Dongguan, Kunshan and Chongqing, covering over 6,000 ㎡ of production space with an annual output of 1,000 environmental test units.

Leveraging mature supply chain resources and independent R&D capabilities, Lab Companion has developed a full lineup of rapid temperature change chambers covering the entire AI hardware testing workflow. Our TC/TH series is CE-certified and fully compliant with global mainstream reliability standards including GB, IEC, JESD and GR, ensuring test data validity for global certification and market entry.

2.2 Full-Coverage 3-Tier Product Matrix

Lab Companion TC/TH series offers standardized chamber volumes of 80L, 150L, 225L, 408L and 800L, with customizable sizes ranging from 80L to 8,000L, fully covering component-level, board-level and system-level testing scenarios.

The TC series provides five optional temperature ramp rates: 5℃/min, 10℃/min, 15℃/min, 20℃/min and 25℃/min, with a standard temperature range of -70℃ to +150℃, covering most semiconductor and AI component testing requirements. An optional liquid nitrogen cooling system boosts the maximum ramp rate to 30℃/min. All ramp rate parameters are fully load-tested with zero performance attenuation under full operating load.

3. Chip-Level Testing: HASS Validation for IP Cores & GPU Chips

3.1 Core Testing Challenges for Semiconductor Chips

At the upstream of the AI supply chain, IP cores, packaged GPUs and wafer-level components require ultra-stringent thermal screening. Despite small sample sizes, chip-level testing demands extreme precision in temperature stability, rapid transition speed and condensation prevention to detect latent packaging and material defects.

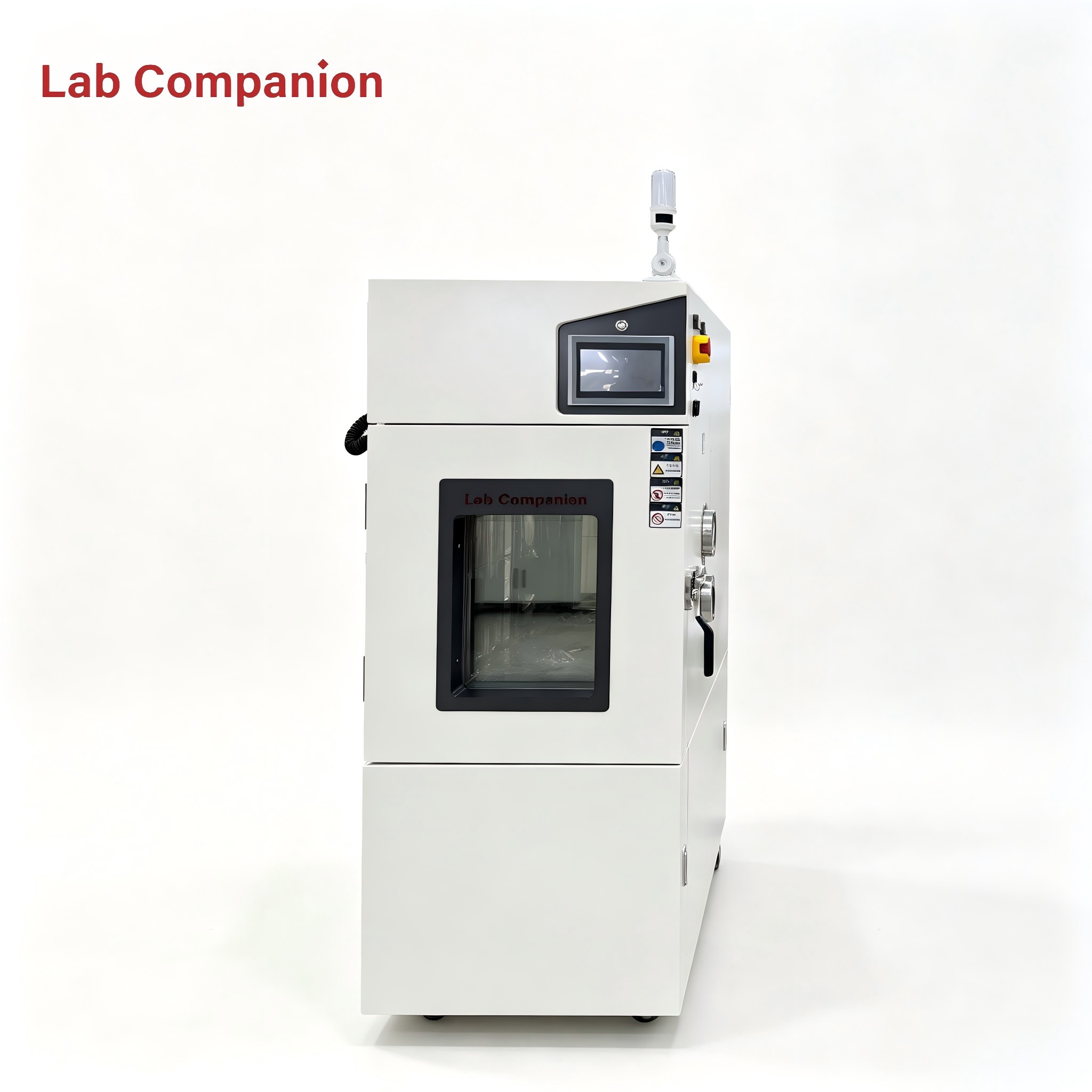

3.2 Technical Advantages of Lab Companion Small TC Chambers

Lab Companion small-size TC rapid temperature change chambers are purpose-built for semiconductor screening. The standard temperature range of -70℃ to +150℃ covers general semiconductor testing, while an extended custom range of -80℃ to +200℃ supports automotive-grade and high-end AI chip validation.

Industry-leading precision ensures temperature fluctuation ≤±0.3℃ and temperature deviation ≤±2℃, delivering accurate and consistent thermal stress to avoid over-testing or under-testing issues that cause invalid test results.

3.3 Mass Production Screening & Anti-Condensation Design

Equipped with multi-layer sample racks, TC chambers support batch testing of hundreds of chips in a single cycle, significantly improving mass production screening efficiency. The standard anti-condensation system precisely controls internal humidity, eliminating surface condensation during temperature recovery and preventing chip oxidation and short-circuit risks during testing.

TC series chambers are widely deployed for R&D verification and mass screening of GPUs, HBM memory, CPO optical chips and high-speed IP switching chips.

4. Board-Level Testing: Reliability Validation for Multi-GPU Modules & Server Boards

4.1 Necessity of Full-Board Thermal Cycling

Multi-GPU modules and complete AI server boards integrate heterogeneous materials with different thermal expansion coefficients. Wide-range thermal cycling from -70℃ to +150℃ effectively exposes latent failures such as solder joint fatigue and BGA cracks. Testing split sub-boards cannot simulate real operating conditions and will miss critical system-level defects, making full-board integrated testing indispensable.

4.2 Technical Adaptation of Medium-Size TC Chambers

Lab Companion medium-size TC chambers feature 340L, 600L and 1000L standard volumes, fully accommodating standard ATX/E-ATX server boards and multi-GPU modules without disassembly.

Even at a high ramp rate of 15℃/min, temperature overshoot is controlled within ±0.5℃. The chambers maintain uniform temperature distribution (≤±1.5℃) after thousands of continuous thermal cycles, ensuring consistent thermal stress across all board components, solder points and connectors.

4.3 Field Case: 72-Hour Continuous Cycling for 8-GPU Server Boards

For a leading AI chipmaker, the Lab Companion TC-1000 chamber completed 72-hour uninterrupted thermal cycling on a fully loaded 8-GPU server board. The chamber maintained stable temperature uniformity without drift or performance decay throughout the test, delivering highly repeatable and consistent test data recognized by professional testing teams.

5. Full-Rack Testing: Walk-In Chambers for 42U Server System Validation

5.1 Challenges of Full System-Level Testing

A fully configured 8-GPU AI server reaches a peak power consumption of over 10kW. Standard 42U racks with liquid cooling pipelines and power distribution units exceed the capacity of conventional thermal chambers, which typically suffer from slowed ramp rates and poor thermal uniformity under full-rack load conditions.

5.2 Lab Companion CW Walk-In Rapid Temperature Change Chambers

Lab Companion CW series walk-in thermal chambers are engineered for large-scale AI server racks and liquid-cooled systems, with volume ranging from 1,000L to 10,000L and support for customized oversized dimensions.

Different from simply enlarging standard chambers, the CW series adopts fully optimized structural design, upgraded refrigeration systems, independent air circulation and intelligent temperature control algorithms. Custom internal dimensions are available based on specimen size and layout, maintaining stable ramp rates from 5℃/min to 15℃/min in ultra-large test spaces.

5.3 Field Case: 300-Hour Full-Rack Reliability Validation

For a top-tier global server manufacturer, the Lab Companion CW2000 walk-in chamber completed a 300-hour comprehensive reliability test on a fully configured 8-GPU server rack, covering high-temperature, low-temperature and thermal cycling scenarios. The system maintained stable cooling capacity and uniform thermal field distribution throughout the long-cycle test, successfully qualifying the full rack for mass production.

6. Global Compliance & Industry Application

6.1 Global Standard Compliance

All Lab Companion rapid temperature change chambers hold CE certification, complying with EU low-voltage and EMC directives. The performance fully meets global industrial standards including GB/T 2423.22, IEC 60068-2-14, JESD22-A104 and GR-468. Test data generated by Lab Companion equipment is globally recognized for product certification and market approval.

6.2 Mass Industry Deployment

Lab Companion thermal test chambers are widely deployed in R&D laboratories and production lines of global chip design firms, server manufacturers and optical module suppliers, supporting reliability verification and mass screening of GPUs, HBM modules, CPO devices and high-speed switching chips.

7. Conclusion

AI compute hardware requires systematic and standardized thermal reliability validation across chip, board and full-rack stages. The traditional fragmented multi-vendor testing model leads to high costs, inconsistent data and inefficient support, limiting scalable development of AI hardware products.

With 21 years of professional experience, Lab Companion provides a one-stop 3-level full-link thermal testing solution for the AI computing industry. Our integrated TC and CW chamber lineup covers the entire testing workflow from small semiconductor components to complete 42U server racks. Featuring load-stable rapid temperature ramping, high-precision temperature control, unified data consistency and global compliance, Lab Companion delivers reliable thermal validation infrastructure for AI hardware R&D, qualification and mass production worldwide.
